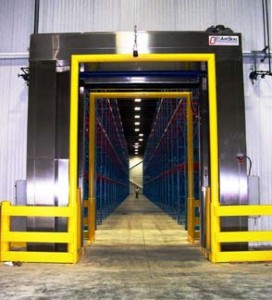

Double Horizontal Recirculatory Air Door

Double Horizontal Recirculatory Air Door

Air Seal's invisible dual air barriers significantly reduce fog, ice and moisture associated with open doorways while allowing for unobstructed traffic and reduced refrigeration loss.

Features
  • AirSeal’s invisible dual air barriers allow for unobstructed traffic flow with reduced refrigeration loss and/or heat gain.
  • Significantly reduces fog, ice and moisture associated with wide-open doorways.
  • Adjustable and programmable air speed controls, allowing for precise application settings.
  • Integrated self-regulating EPLC controlled heater unit for optimal air mixing temperature control and condensation reduction.
  • AirSeal’s efficiency reduces coil defrosting burden and improves refrigeration cycle efficiency.
  • Electric or hot gas heat reclaim allows for precise application requirements.
  • Eliminates maintenance costs associated with hard panel doors.No need for energy absorbing infrared heat lamps.
  • Reduction of ice, fog and moisture dramatically increases safety and material handling.
  • Fully programmable logic controller with preset modes for maximum energy cost savings.
  • All galvanized or stainless steel design for cleanability.
Door Sizes
  • Maximum:10’0” x 15’0”.
  • Minimum:  6’0” x  6’0”.
    (Other sizes available - Consult factory)
Frame Construction
  • Galvanized metal.
Electrical Features
  • NEMA-4 fiberglass control box.
  • Fully programmable EPLC controls.
  • Variable frequency drive.
  • Optimization Controls (Freezer door).
Operator Features
  • AirSeal:High efficiency low maintenance direct drive operators with minimum 5 h.p. motors
Operation

Electric Operation

  • AirSeal:4,600 cfm each door at 4” of water gauge.
Options
  • Digital display on cooler door.
  • Stainless steel construction.
Warranty
  • One year limited warranty on all components.
